six-axis force/torque sensor for humanoid robots

Industry Category
Sensing Systems Force sensor module Force sensor Six-axis force sensor
联系二维码

Scan to Inquire About the Product

Product Description

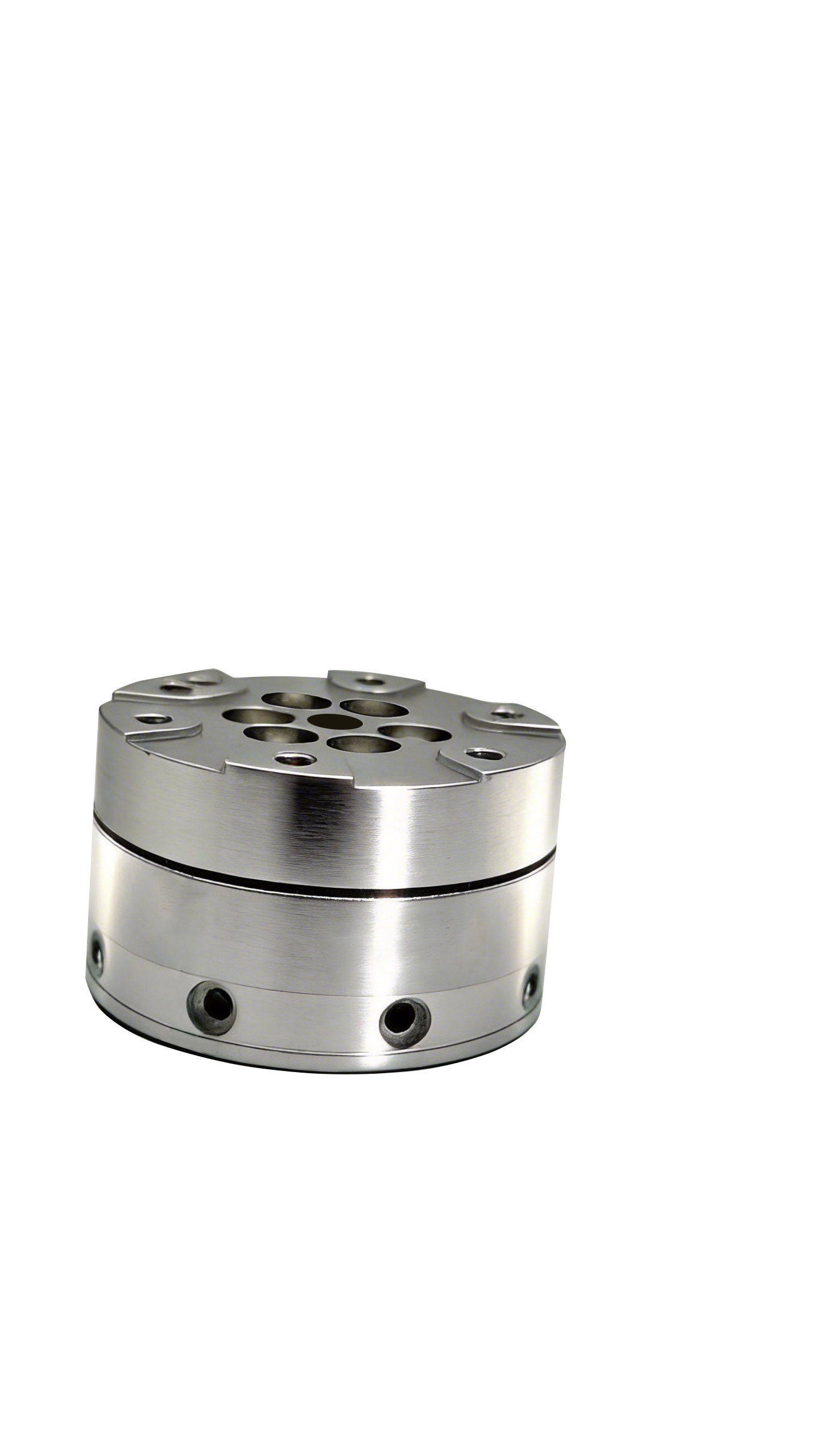

Zhongke Midpoint’s six-axis force/torque sensor for humanoid robots boasts an overall accuracy of 0.1–0.51 TP3T FS, reaching a world-leading standard. It features no lag and zero drift, with excellent adaptability for the wrist and ankle joints of humanoid robots. This sensor can accurately detect changes in force, ensuring the robot’s balance and the quality of human–robot interaction. It also offers outstanding anti-interference capability and an ultra-fast response speed, enabling it to replace similar imported products at a significantly lower cost, whilst supporting adaptation to multiple communication protocols.

Product Specifications

Model: Y50-H30 Overload Level: 200% Fx, Fy Range: 100N Zero Output: ±0.5%FS Fz Range: 100N Non-linearity Error: 1%FS Mx, My Range: 2Nm Hysteresis Error: 1%FS Mz Range: 2Nm Repeatability: 1%FS Diameter: 50mm Protection Class: IP64 Height: 30 mm Operating Temperature: -20 to +80 °C Material: Aluminium Alloy Communication Interface: RS485

Company Profile

Anhui Zhongke Midian Sensor Co., Ltd.

Anhui Zhongke Midian Sensor Co., Ltd. is a high-tech enterprise backed by the Chinese Academy of Sciences, specialising in the research, development, production and sale of six-axis force sensors. Utilising advanced technology and algorithms, our sensors are capable of accurately measuring and recording the forces acting on objects in space, including forces in three directions and torques in three directions. The rapid development of industrial automation and robotics technology in China has led to an ever-increasing demand for high-precision force sensors. Our six-axis force sensors are widely used in fields such as defence, humanoid robots, industrial robotics, automotive manufacturing, aerospace and medical equipment, providing users with precise force control and measurement solutions. Our product advantages: 1. High precision and stability: Through advanced sensor technology and precise calibration methods, our products deliver highly accurate and stable measurement results. 2. Versatility and flexibility: Our six-axis force sensors feature a wide range of functions and measurement modes, enabling them to adapt to diverse application requirements. 3. Reliability and durability: Manufactured using high-quality materials and processes, our products offer outstanding reliability and durability, ensuring stable, long-term operation even in harsh working environments. 4. Customised solutions: We are able to provide bespoke sensor solutions tailored to our customers’ specific requirements, meeting the demands of various industries and applications. Anhui Zhongke Midian Sensor Co., Ltd. is committed to becoming a leading enterprise in the field of six-axis force sensors, providing customers with innovative solutions and high-quality products. We look forward to collaborating with you for mutual growth!
