Power SoC-M6008

Power SoC-M6008

联系二维码

Scan the code to enquire about the product

Product Description

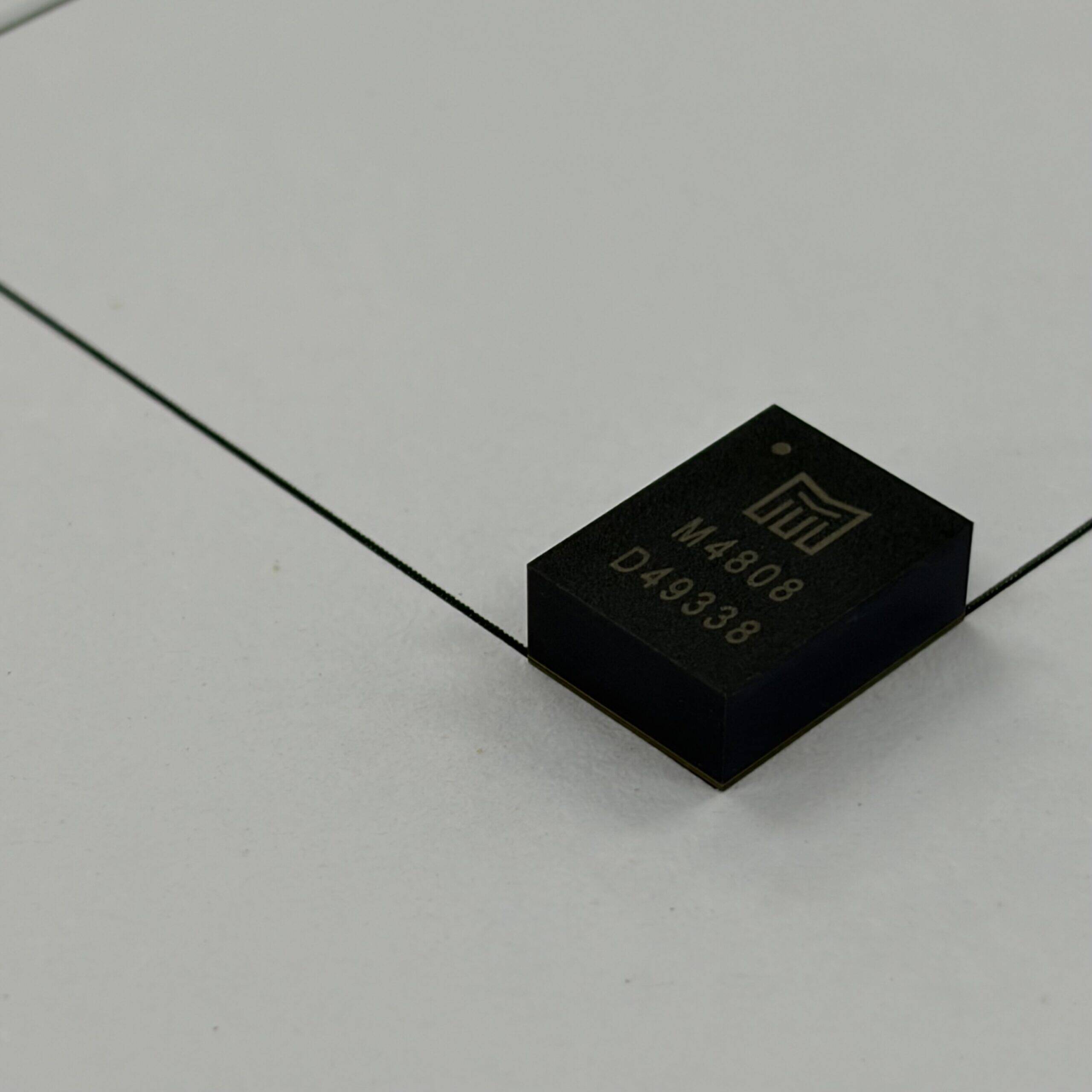

100 V input rating, 8 A step-down DC-DC power SoC with integrated

Product Specifications

Up to 100V input rating Voltage Output voltage: 0.8V to 40V Output current: 8A continuous Stable with low ESR ceramic capacitors Selectable light load mode Diode Emulation Mode (DEM) for good light load efficiency Forced continuous conduction mode (FCCM) for Better EMI Performance 92% High Duty Cycle Operation for Low Dropout Frequency SYNCI and SYNCO Capability Pre-Biased Start-Up Power Good Indicator Junction Temperature Range: −40°C to 125°C Adjustable soft-start time Cycle-by-cycle output current limit Hiccup mode for SCP and OCP Over-output voltage protection Thermal shutdown protection LGA-63 (9mm × 12mm × 4.4mm) package Lead-free RoHS compliant

Company Profile

Shenzhen WoXin Semiconductor Technology Co., Ltd.

iModule Semiconductor Technology Co., Ltd. (iModule) was established in 2020 and is headquartered in Shenzhen; its core team comprises former senior executives from the China division of a renowned US power management chip company. With initial investment of tens of millions of RMB, the company is dedicated to the research, development and sales of next-generation high-power-density chip-scale power modules, including those based on third-generation power device modules. Its product range covers various voltage and current ratings, primarily targeting high-end applications such as 5G, industrial and medical sectors.
