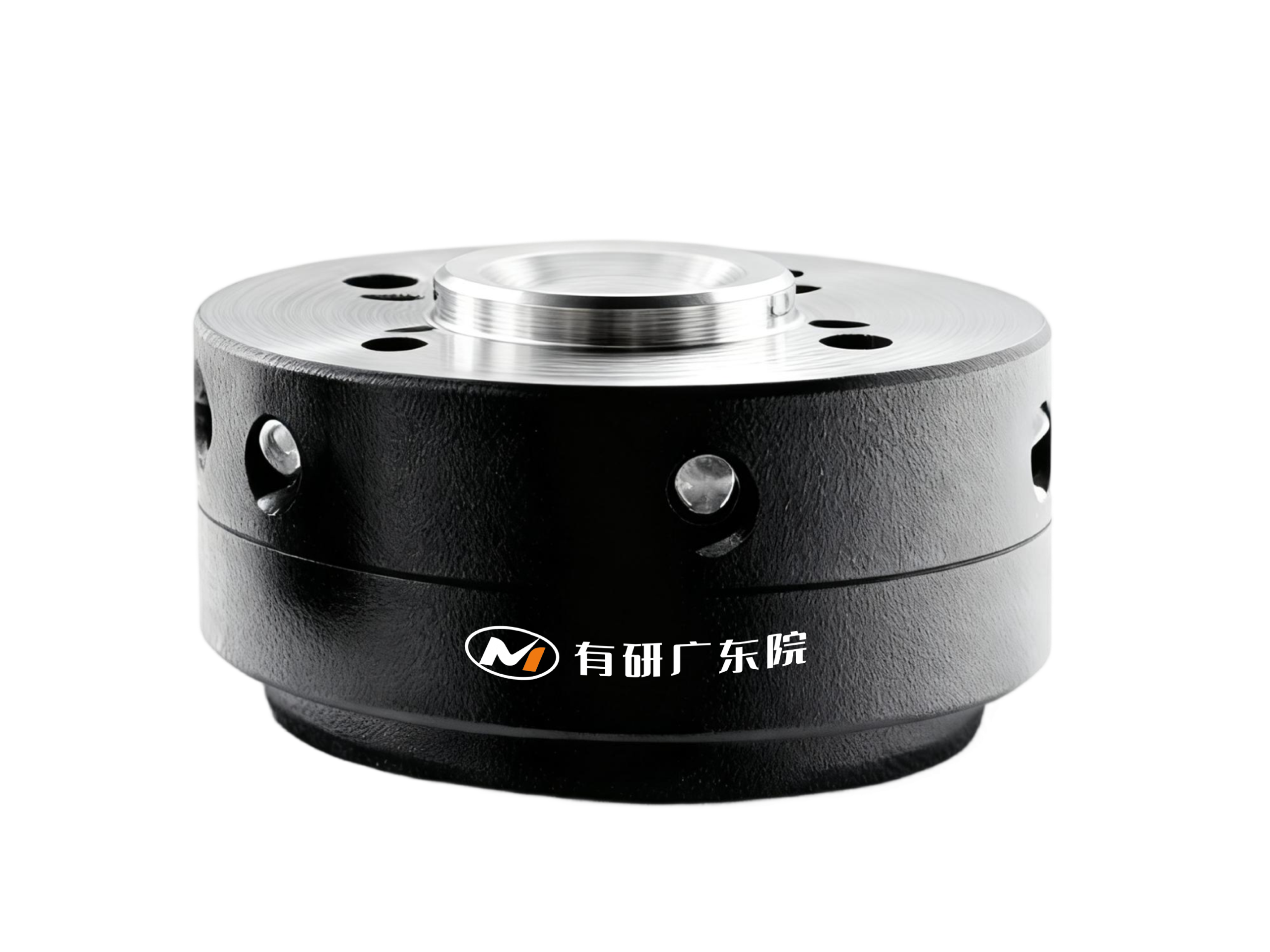

LF200 Single-axis Dynamic Force Sensor

Industry Classification
Sensing system Force sensor module Force sensor One-axis force sensor
联系二维码

Scan the code to enquire about the product

Product Description

Designed for the accurate measurement of uniaxial tension and compression, this sensor offers high linearity, low hysteresis, temperature compensation and overload protection. It is easy to install and offers long-term stability and reliability, providing stable and accurate force sensing and data output for equipment.

Product Specifications

This is a high-precision force sensor designed specifically for uniaxial tension and compression measurement. With a measuring range of 200 N and a sensitivity of 2 mV/V, it converts force variations into stable electrical signals. Its non-linearity, hysteresis and repeatability are all controlled within ±0.031% of full scale (FS), ensuring highly accurate and reliable measurement data for applications such as automated testing, robotic force control and precision assembly. The sensor utilises temperature compensation technology, maintaining high stability from -10 °C to +40 °C, with an operating temperature range extended to -35 °C to +70 °C to meet the demands of harsh environments. It features a 150% safe overload capacity to effectively withstand accidental impacts and extend service life. With an IP64 protection rating, it is dustproof and splash-proof, making it suitable for industrial environments. The excitation voltage ranges from 10 to 15 V, making it compatible with most data acquisition devices. The sensor is easy to install and delivers stable and reliable performance during long-term operation.

Company Profile

YIGEN (Guangdong) New Materials Technology Research Institute

The YUAN (Guangdong) New Materials Technology Research Institute (hereinafter referred to as YUAN Guangdong Institute) is a provincial-level registered public institution jointly established under a four-party agreement between China YUAN Technology Group Co., Ltd., the Guangdong Provincial Department of Science and Technology, the Foshan Municipal People’s Government and the Chancheng District People’s Government. It was registered and established on 30 June 2021, Located in Chancheng District, Foshan City, it is a new type of research and development institution integrating technological R&D, public services and industrial incubation. Operated and managed by the central state-owned enterprise China YIGEN, it is dedicated to the field of new non-ferrous metal materials, with a strategic focus on three key areas: new energy materials, advanced electronic materials and structurally functional integrated materials. Leveraging the National Key Laboratory of Intelligent Sensing Functional Materials, the institute has developed highly reliable, consistent and precise unidirectional force/torque sensors and six-axis force sensors for the embodied intelligence and robotics markets. Through the application of new materials, structural design and algorithmic research, the institute enhances the overall accuracy, consistency and fatigue life of its multi-axis force sensor products, thereby meeting the demands for fine-tuned end-effector control and motion control in robotic applications.
