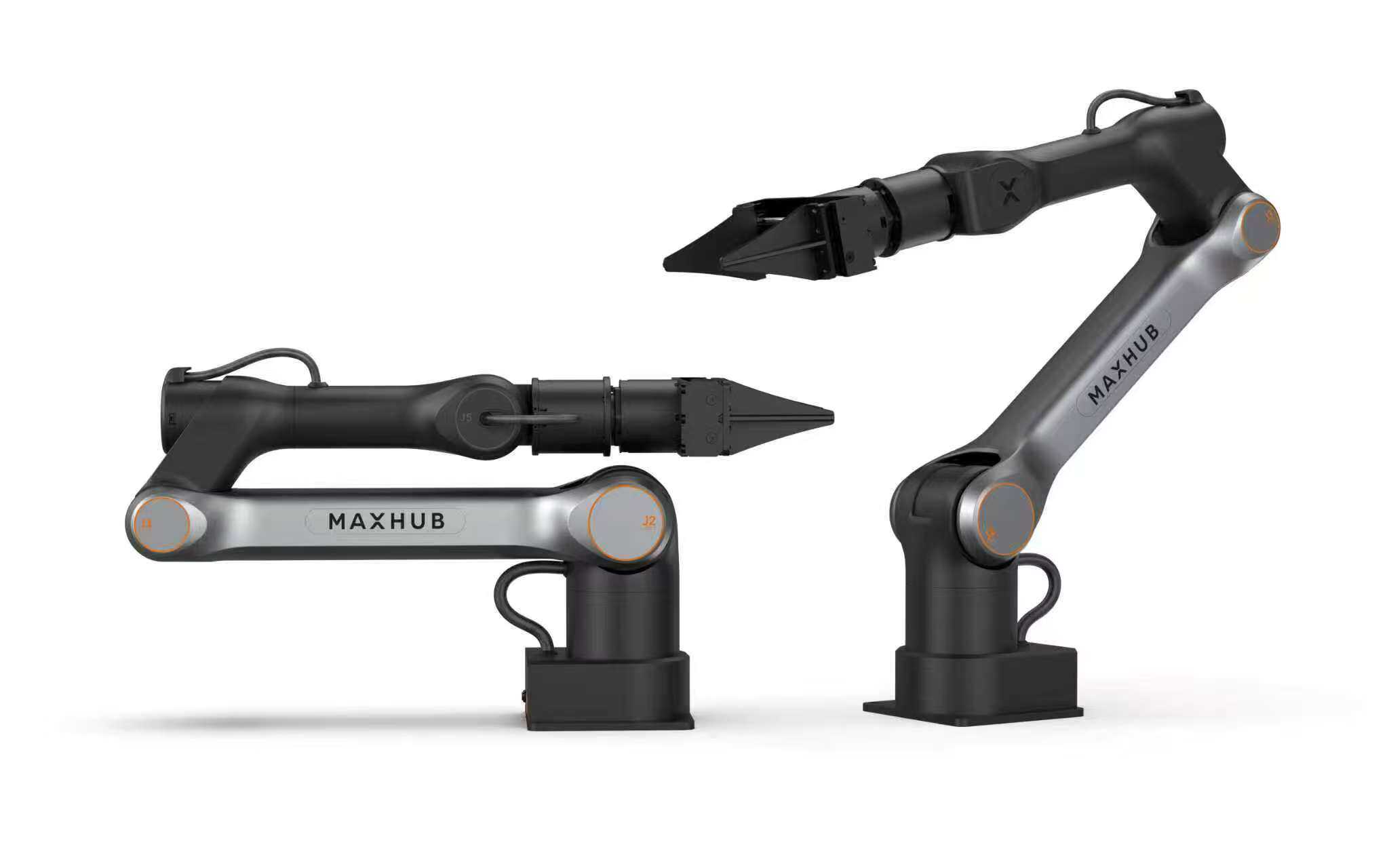

MAXHUB A3

MAXHUB A3 Robotic Arm Specifications (English Version) I. Basic Configuration Rated Payload (Full Working Conditions): 2kg Maximum Payload (Typical Working Conditions): 4kg Degrees of Freedom: 6 Reach: 700mm Gearbox Type: Planetary Gearbox Mounting Method: Vertical Mount (All Directions) Power Supply: 24–48V Net Weight: <6kg External Interfaces: Ethernet Port, Emergency Stop Port, Power Port II. Performance Parameters End-of-Motion Stability (High-Speed Load): Stable convergence time <1s, Vibration amplitude 5 m/s 2 kg Pick-and-Place Cycle (25 × 600 × 25 mm): 2 s Term Explanation (for overseas sales/technical documents) TCP (Tool Centre Point): Industry standard term for the robot’s end-effector centre point, universally recognised in global robotics. Pick-and-Place Cycle: Standard industry term for robotic material handling cycle time. Planetary Reducer: Standard technical term for the gear reducer solution. Repeat Positioning Accuracy: Industry standard term for robotic positioning precision Concise Version (for social media/short copy) MAXHUB A3 6DOF Robotic Arm 2kg rated / 4kg max payload, 700mm reach, 5m/s max TCP speed, ±0.5mm repeat positioning accuracy. 24–48V wide voltage, vertical mounting in all directions, plug-and-play with Ethernet/emergency stop/power interfaces. High stability: <1s convergence, <1cm vibration, 2s 2kg pick-and-place cycle, excellent continuous temperature rise.
