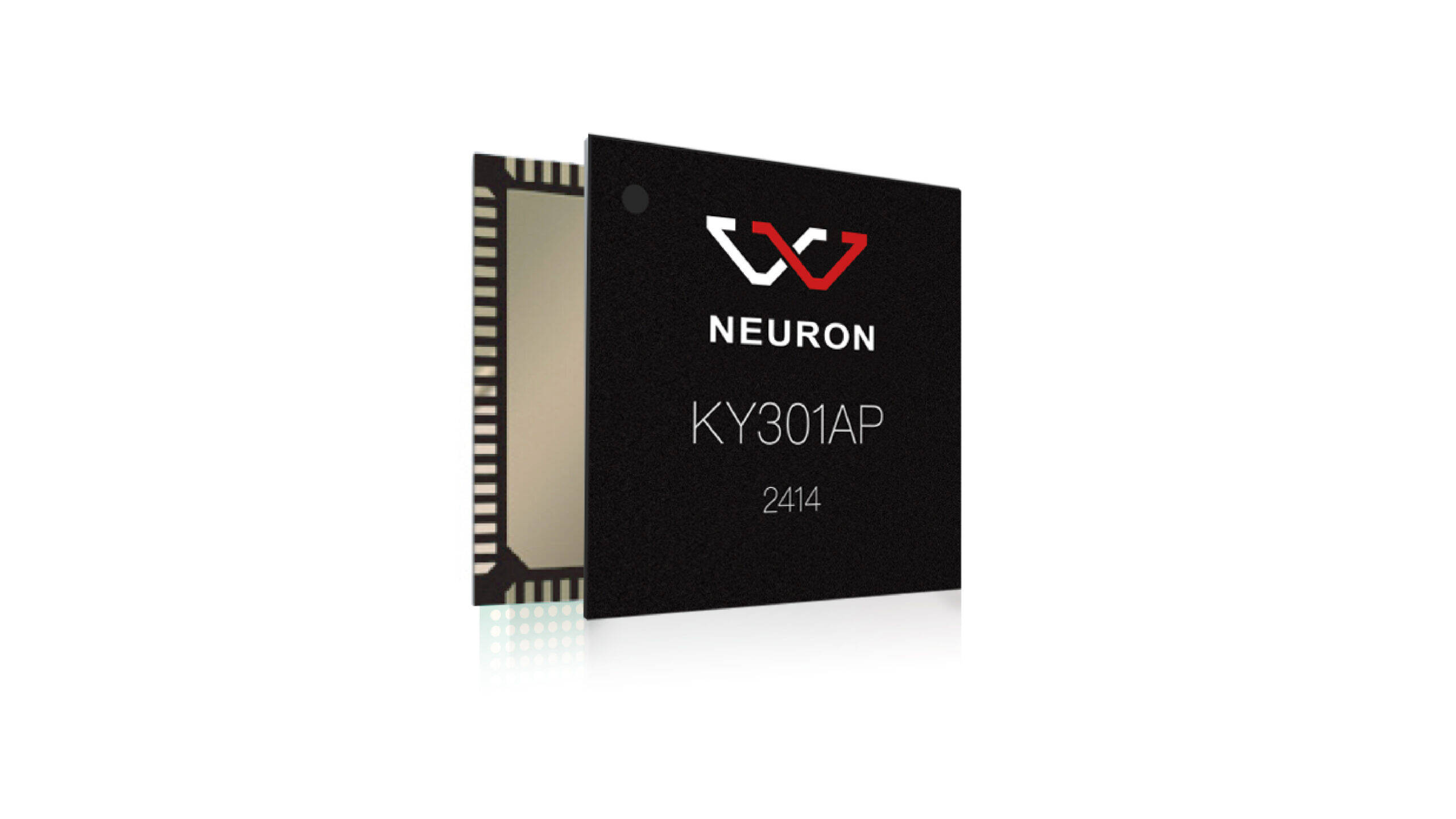

KY301AP Series AUTBUS Physical Layer Transceivers

A fully featured embedded analogue front-end, supporting all modes of the AUTBUS bus with a maximum communication rate of 100 Mbps. Features built-in analogue switches and low-power cable drivers; no additional driver components are required for short-distance communication. Multiple bandwidth modes of the AUTBUS bus are available. In low-speed mode, it supports stub cables up to 4m and a maximum transmission distance of 2km. Supports a single 3.3V power supply. Digital I/Os are compatible with 1.8V, 2.5V and 3.3V. Equipped with one 10/100 Mbps RGMII/RMII Ethernet port, one QSPI slave interface compatible with SPI mode, and one SPI master/slave interface that supports global synchronous sampling in master mode. One UART interface for chip debugging. Two PWM outputs supporting global synchronous pulse output with a synchronisation accuracy of ±40 ns. Two CAPTURE input channels. Four 32-bit timers and one 64-bit timer supporting global synchronisation. Supports transparent Ethernet transmission for more than 14 nodes.
